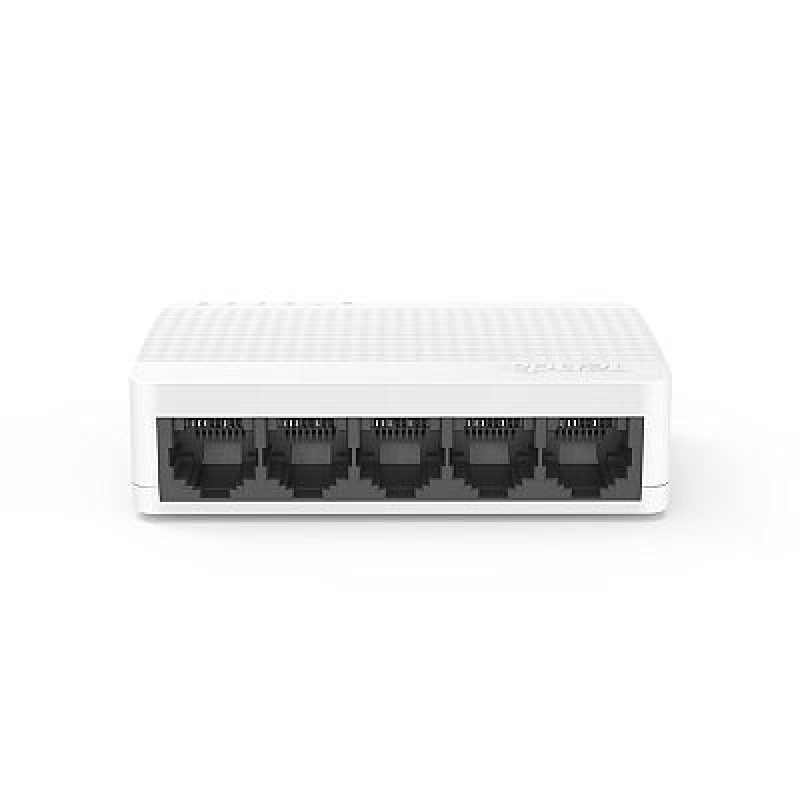

Tenda Switch 5port 10/100 S105

Технички спецификации

Tenda 5-port Ethernet Switch S105 is a desktop switch specially designed for families, offices, dormitories etc. 5* 10/100 M auto-negotiation ports with full duplex rate up to 200Mbps bring blazing fast Internet access. Plug-and -play design makes installation easily in no time. No matter you are a tech-savvy enthusiast or a first-time user, S105 is super easy and intuitive to setup without time-consuming operations.

Specification
Standard&Protoco: lIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Transmission Media: 10Base-T: UTP Cat 3( or better) ;100Base-TX: UTP Cat5
Power: Output power: 5.0V 0.6A (external power adapter) ;Input Power :AC:100~240V;50/60Hz
Dimension: 82.00mm*52.00mm*22.30mm( L*W*H)
Indicator: 1*power indicator, 5*status indicator
Power Consumption: Standby: 0.8W Maximum:1.59W
Packet Forwarding Rate: 10Mbps:14880pps;100Mbps:148800pps
Backbound Bandwidth: 1.0Gbps
MAC Address Table: 2K
Forwarding Mode: Store-and-Forward
Access Control: CDMA/CD
Port: 5*10/100M auto-negotiation RJ 45 ports (Auto MDI/MDIX)
Temperature: Storage Temperature: -40?~70? ;Operating Temperature: 0?~40?
Humidity: Storage Humidity: 5%~90% non-condensing;Operating Humidity: 10%~90% non-condensing
Certification: CE; FCC; RoHS
Operation System: Windows 8 32/64 bit,Windows 7 32/64 bit,Windows xp 32/64 bit,Linux,MAC OS
Package Content: 1* Installation Guide;1 * 5-port Ethernt Switch;1* Power Adapter (5V0.6A)
