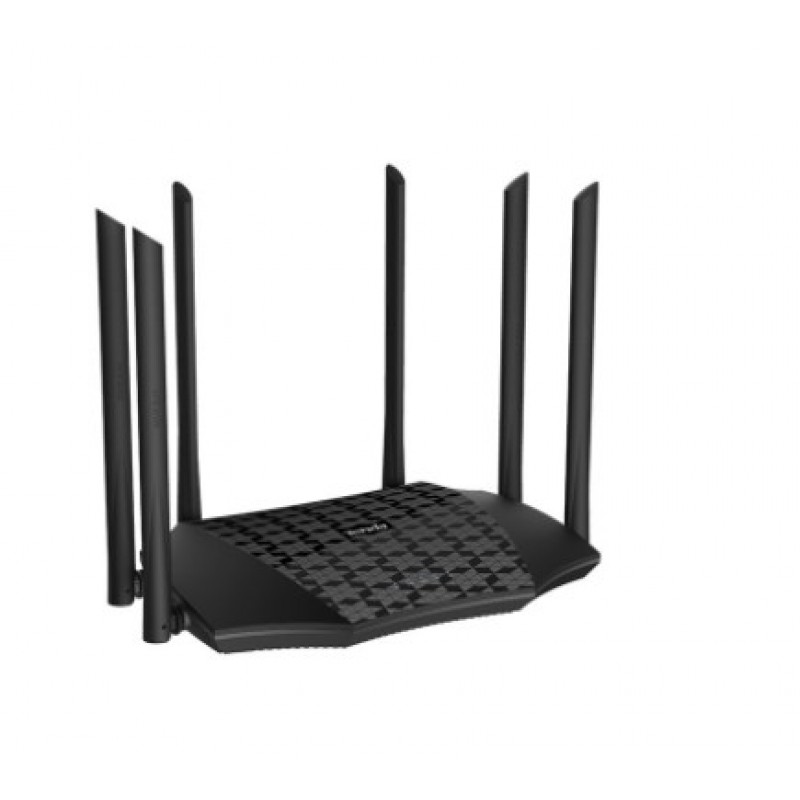

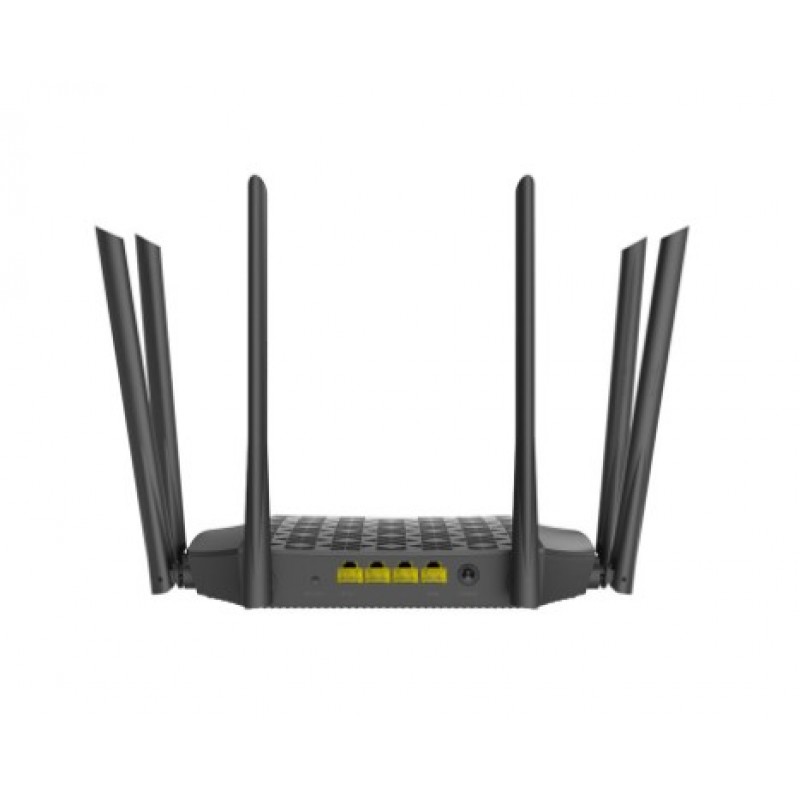

Tenda Wireless AC Smart Dual-Band Gigabit Router 2100Mbps AC21 w/6 Antennas

Технички спецификации

AC21 is a dual band gigabit wireless router specially designed for households with high speed internet access. It supports 802.11ac wave2 techonology and provides WiFi speed up to 2033Mbps (2.4 GHz: 300Mbps, 5GHz: 1733Mbps) to achieve the best performance for your fiber internet connection. Powered by 4X4 MU-MIMO technology of 5GHz band, it provides wider WiFi coverage and faster WiFi speed than regular routers with 3X3 MU-MIMO technology. Equipped with full gigabit ports, it supports up to 1000Mbps bandwith access. The 28nm 1GHz CPU equipped with 500MHz co-processor, dual-core design brings a faster processing speed and provides optimized operation. Featured with 6*6dBi external antennas , AC21 outshines in performance and wall penetration capacity.
--------------------------------------
https://pic.tendacn.com/pro_pictures/AC21/5.jpg
https://pic.tendacn.com/pro_pictures/AC21/7.jpg

EIRP Power (Max.) - 2.400-2.4835GHz:19.86dBm (EIRP)
5.150-5.250GHz:22.96dBm (EIRP)
Standard&Protocol - IEEE802.3, IEEE802.3u,IEEE802.3ab
Interface - 1*10/100/1000Mbps WAN port
3*10/100/1000Mbps LAN ports

Antenna - 6*6dBi external antennas
Button - 1* WPS/Reset button

Power - Input:AC 100-240V~50/60Hz 0.6A
Output:DC 12V1.5A
Dimension - 231.3*150.6*39.6mm

LED indicator - Sys*1,WAN*1, LAN*1,WiFi/WPS*1
Wireless Standards - IEEE 802.11ac wave2/a/n 5GHz
IEEE 802.11b/g/n 2.4GHz
Data Rate - 5GHz: Up to 1733Mbps
2.4GHz: Up to 300Mbps

Frequency - Simultaneous dual band 2.4 & 5GHz
Transmit Power - CE:
<20dBm(2.4G)
<23dBm(5G)
Basic Features - SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
MU-MIMO

Wireless Security - WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) fast encryption
Internet Connection Type - PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Operating Mode - Wireless Router Mode
Universal Repeater Mode
WISP Mode

DHCP Server - DHCP Server
DHCP Client List
DHCP Reservation

Virtual Server - Port Forwarding
DMZ Host
UPnP

Security - Client Filter
Parental Control(support black list and white list)
Remote Web Management

Firewall - Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet

DDNS - Support DynDNS, Oray.com, 88ip

VPN - IPsec pass through
PPTP pass through
L2TP pass through
PPTP server
PPTP client
L2TP client

Special Features - Smart Traffic Prioritisation
PPPoE Username/password Clone
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda Cloud
Tenda App

Other - Bandwidth Control
Guest Network
IPTV
MAC Clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser
Supports IPv6
Alexa

Temperature - Operating Temperature: 0? ~ 40?
Storage Temperature: -40? ~ 70?.
Humidity - Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-con

Гаранција : 24 месеци
