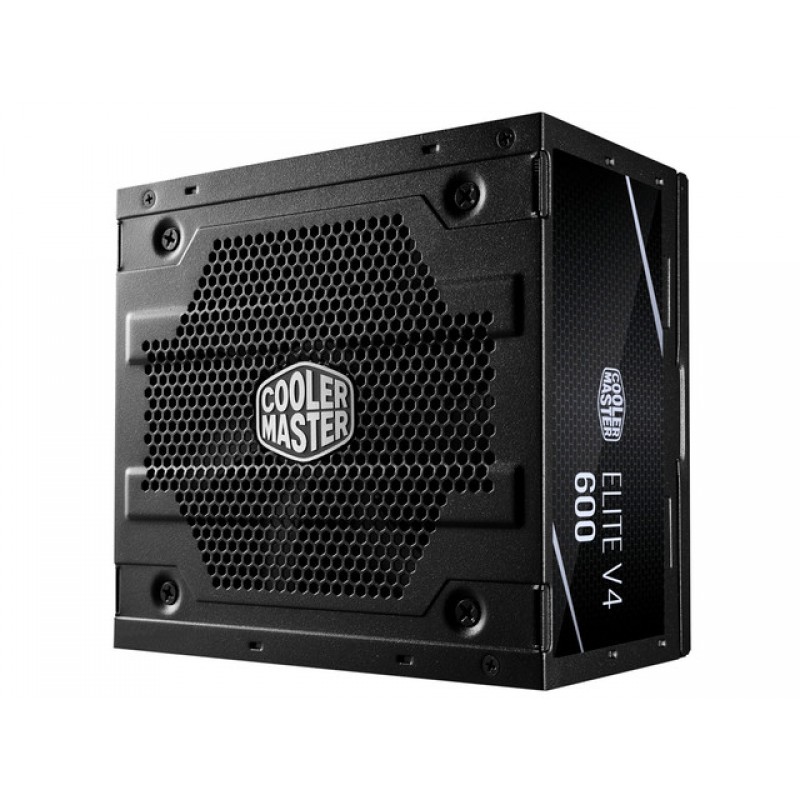

PSU 600W Cooler Master Elite V4 80plus

Технички спецификации

Active PFC + Forward Topology Design
High Temperature Resistance
Peak Power Tolerance
80 Plus White EU 230V Efficiency
Durable, Reliable, And Safe

Standard: ATX 12V v2.41
PFC type: Active
Protections: UVP, SCP, OVP, OTP, OPP
Certificates: 80 Plus
Power: 600 W
Efficiency: 85 %
Construction: Standard
Number of installed fans: 1
Fan diameter: 120 mm
Installed fans: 1x120 mm
Input voltage range: 200 - 240 V
Current rate: 5 A
Current at +3.3V: 20 A
Current at +5V: 20 A
Current at +5Vsb: 3 A
Current at +12V1: 46 A
Current at -12V: 0.3 A
Max +12V line load: 552 W
Max +3.3V and +5V line load: 110 W
Number of SATA connectors: 5
Number of Molex connectors: 3
Number of PCI-E connectors: 2
Other connectors: EPS 4+4 pin, ATX 24-pin
Length: 140 mm
Width: 150 mm
Height: 86 mm
Environment temperature: 0 - 40 °C
