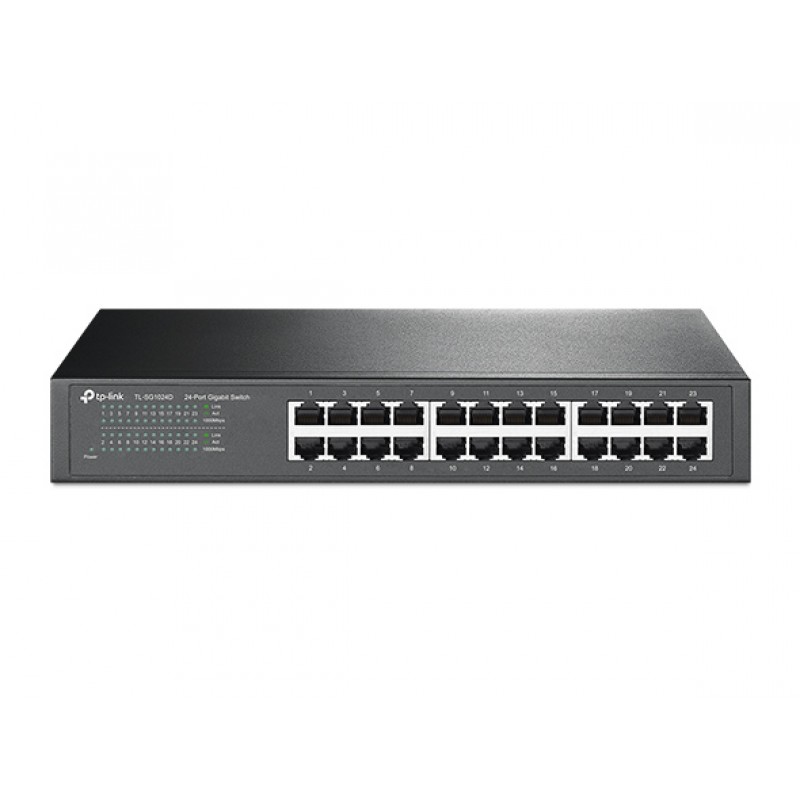

TP-Link Switch 24port Gigabit 10/100/1000 TL-SG1024D

Технички спецификации

• 24 10/100/1000Mbps ports
• Innovative energy-efficient technology saves power consumption
• Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
• Plug and Play
• Rack-mountable

Specifications
HARDWARE FEATURES
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface: 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media:
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity: Fanless
Physical Security Lock: No
Power Supply: 100-240VAC, 50/60Hz
Dimensions ( W x D x H ): 11.6 ? 5.5 ? 1.7 in (294 ? 140 ? 44 mm)
Mounting: Rack Mountable
Max. Power Consumption: 13.62W(220V/50Hz)
Max Heat Dissipation: 46.44BTU/h

PERFORMANCE
Switching Capacity: 48Gbps
Packet Forwarding Rate: 35.7Mpps
MAC Address Table: 8K
Advanced Features:
• Isolation Mode: Ports 1-22
• Loop Prevention: Ports 1-24
Jumbo Frame: 10KB
Green Technology: Yes
Transmission Method: Store-and-Forward

OTHERS
Certification: FCC, CE, RoHS
Package Content:
• 24-Port Gigabit Desktop/Rackmount Switch
• Power Cord
• Installation Guide
• Rackmount Kits
• Rubber Feet
Environment:
• Operating Temperature: 0?~40? (32?~104?);
• Storage Temperature: -40?~70? (-40?~158?);
• Operating Humidity: 10%~90% non-condensing;
• Storage Humidity: 5%~90% non-condensing
